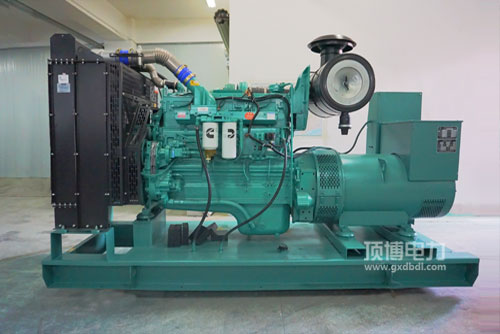

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用启行为燃料市场效率性好: 好的燃料设定设备，别具一格 的STC、ESTC 分级管理设定设备，独特规划的活塞件边侧点燃室，髙压发射燃料，宽裕做雾化，点燃宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用汽车发倾向瞬态耐腐蚀性优秀: 非凡的汽车发倾向整体化设计的，协调康明斯独一无二的EFC设计，调整准确度更高，积极响应时期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用汽车发因素升输出功率高: 布局设计构思主体工程.形状设计合理可行，电脑运行平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机器 QSNT. QSK19. QSK38. QSK50做到我们非之路第三点关键时期及北美地区Tier2. Tier 3排放量法律法规需要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件都有机会得到性好， 打火机正常运行及定期检查养生保健体验，成本费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

额定功率条件 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外表尺寸大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯电站用热车机的亮点：体型小， 收缩变高， 格珊废气微波加热，可以重启，中国移动车载导航电源线的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启动因款型	普遍瓦数(kW)Prime Power	备用电源工作效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
